P16s i Gen 4

Version: 1.0 | 10/16/2025

Product Name

P16s i Gen 4

Product Display Name

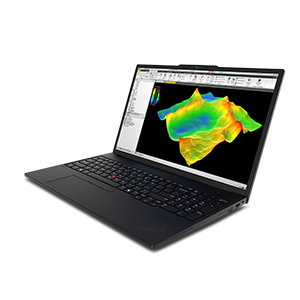

ThinkPad P16s i Gen 4

Information Date

Sep 4 2025

SECTION I: Platform Overview

Description



A perfect mix of power, performance, and sustainable design in a thin and light 16-inch chassis, the Lenovo ThinkPad P16s i is ideal for designers, engineers, and students to be creative anytime, anywhere.

CPU

Processor Support



Arrow Lake H Processor Ultra5/7/9

Socket Type



BGA

Disclaimers





Operating Systems

Preloaded



Windows 11 Pro 64 (Win11 24H2)
Windows 11 Home 64
Windows 11 Home Chinese Language Edition 64
Ubuntu ( v24.04)

Supported



Windows 11 Pro 64 (Win11 24H2)
Windows 11 Home 64
Windows 11 Home Chinese Language Edition 64
Ubuntu ( v24.04)

Disclaimers





Memory

Number of DIMM Slots



2 slots

Channels



Single channel with 1x SODIMM/CSoDIMM , Dual channel with 2x SODIMM/CSoDIMM

Type



DDR5

ECC Support



No

Speed



SoDIMM 5600 MT/s
or CSoDIMM 6400MT/s

Max DIMM Size



48GB

Max System Memory



96GB

Min System Memory



16GB

Soldered Memory



NO

Disclaimers





Storage

Storage Slots



1 x PCIe Gen 4 M.2 2280

SATA



/

PCIe



Solid State Drive, OPAL2 PCIe-NVMe Gen 4 M.2 2280- TLC

SAS



None

Interface



PCIe Gen 4

Security



PCIE

Optional Hard Disk Drive Controllers



OPAL2 for NVMe SSD

Disclaimers





Video

Integrated Graphics



Intel Arc Pro Integrated Graphics (with at least 16GB dual dimm populated)
Integrated Graphics (single DIMM or <16GB dual dimm)

Discrete Graphics



NNVIDIA RTX PRO 1000 (8GB GDDR7 ) / 500 (6GB GDDR7 )Blackwell Generation Laptop GPU

Adapter



None

Bus Interface



PEG

Disclaimers





Display

Resolutions



FHD+ / 4k OLED

Camera

Resolution



5M

Frames per Second



30 fps

Focus



FF 50cm(fixed focus)

Camera Interface



USB 2.0

IR Camera



Yes (optional)

Keyboard

Number of Keys



US : 105 / UK : 106 / JP : 110

Numpad



Yes

Size



100% ISO

Function Key Features



Yes

Backlit



Yes

Keyboard size



CS24 KBD with Numberpad

Key stroke



1.5mm

Key pitch



19.05mm

Keyboard backlight



Yes

Keyboard thickness



4.0mm

Touchpad / Fingerprint Reader

TrackPoint Details



TrackPoint module (t4.8mm)

Finger Print Reader Model



Normal MoC Round FoP, Black

Multi-Touch



Yes

Resolution



1000 ppi

TouchPad/Trackpad thickness



3.4mm

TouchPad/Trackpad type



3 BCP

Trackpad size



115mm x 67.6mm

Trackpad material/finish



Glass like mylar surface

I/O – Ports and Connectors

USB



2x USB-A 3.2 (Gen 1) (1 powered)

Thunderbolt



2x Thunderbolt 4 (USB 4/USB-C 3.2 Gen 2/DP2.1/PD)

HDMI



1x HDMI 2.1 TMDS up to 4K/60Hz

Audio Combo Jack



1x Microphone & Headphone Combo Jack (3.5mm)

Media Card Reader



N/A

Smart Card Reader



Yes (optional)

Power Connector



DC-In

Docking Port



Docking Via Thunderbolt 4

VirtualLink



None

Network adapter



Gigabit Ethernet (RJ45)

Disclaimers





Power Connector

Main



DC-In

USB-C



1x Thunderbolt 4 (USB-C/DP/PD)

Disclaimers





Ethernet

Vendor



Intel

Count



x1

EEPROM



SPI ROM (Merge with BIOS/MEFW)

Speeds



10/100/1000 Mbps

Functions



Wake On LAN
MAC Address Pass Through
PXE Boot
Flash Over LAN

Connectors



Drop-jaw RJ45

Disclaimers





WWAN

Model



optional: CAT16

Disclaimers





Near Field Communications

Model



NA

Disclaimers





Audio

Vendor



Realtek

Type



High Definition Audio Codec

Internal Speaker



Yes, dual speakers

Connectors



Microphone & Headphone Combo Jack (3.5mm)

Chipset



ALC3287

Number of Channels



4-channel DAC, 4-channel ADC

Number of Bits/Audio Resolution



16/20/24-bit PCM format

Sampling Rate (Recording/Playback)



48000Hz

Signal to Noise Ratio



90dB Signal-to-Noise Ratio (A-weighting) for ADC input.
100dB Signal-to-Noise Ratio (A-weighting) for DAC output

Analog Audio



None

Dolby Digital



Dolby Audio

Digital Out (S/PDIF)



No

Speaker Power Rating



2W@4ohm/ch

Disclaimers





Power adapter

Type



100W AC Adapter

Dimensions



108mm x 56mm x 26.5mm

Input Voltage



100-240V

Disclaimers





Security

TPM



Yes, TPM2.0

Asset ID



Yes

vPro



Yes on vPro model

Disclaimers





Chassis Information

Format



Ultraslim Notebook

Color



Deep Black

Thermal Solutions



Internal dual FAN, Intelligent Cooling

Dimensions



Length
14.23 inches
361.50 millimeters

Width
9.79 inches
248.60 millimeters

Height
Front 12.6 millimeters / 0.49 inches
Rear : 18.17 millimeters /0.71 inches

Weight



Starting weight UMA 1.82kg / 4.00 lbs
SWG 1.89kg/ 4.16 lbs

Disclaimers





Packaging Parameters

Height (mm)



326

Height (inch)



12.84

Width (mm)



491

Width (inch)



19.34

Depth (mm)



95

Depth (inch)



3.75

Weight (kgs)



0.62

Weight (lbs)



1.37

Disclaimers





Security & Serviceability

Hardware Maintenance Manual



Yes

Drivers & Software



Yes

Self Healing BIOS



Yes(FW Resilience 2.0)

Access Panel



Removeable bottom cover

Number of Screws



8

Swappable Components



Base cover assembly, TrackPoint pointing stick, Lenovo factory recovery USB key, Power cord, ac power adapter (65W)

Storage Slots



1 storage slot

Memory



2 slots

System Board



1190 System Board. No self-service CRU.

Restore CD/DVD/USB Set



None. Purchase via Lenovo Customer Support Center

Cable Lock Support



Security-lock slot

Power-On Password



Yes

Hard Disk Password



Yes; User and Master hard disk password

Supervisor Password



Yes

NIC LEDs (integrated)



No (if it means the LED for Ethernet)

Security Chip



Yes (for TMP 2.0)

Access Panel Key Lock



Bottom Cover Tamper Detection

Boot Sequence Control



Yes

Disclaimers





Operating Environment

Operating – Air Temperature



At altitudes up to 2438 m (8000 ft)
– Operating: 5°C to 35°C (41°F to 95°F)

Non Operating – Air Temperature



At altitudes up to 2438 m (8000 ft)
– Storage: 5°C to 43°C (41°F to 109°F)

Humidity



Operating: 8% to 95% at wet-bulb temperature 23°C (73°F)
Storage: 5% to 95% at wet-bulb temperature 27°C (81°F)

Corrosive Gas



G1

Particulates



P1

Disclaimers





SECTION II: Platform Detail

Supported Components

Processor



Ultra 5 -225H Non-vPro
Ultra 5 235H vPro
Ultra 7 255H non-vPro
Ultra 7 265H vPro
Ultra 9 285H vPro

Memory Support



DDR5

Chipset (PCH)



Integrated Soc

Size of BIOS Flash



64M + 16M

Super I/O



N/A

Clock



Crystal

Audio



Realtek High Definition Audio

Ethernet



Non-vPro model: Intel® Ethernet Connection I219-V (Jacksonville)
vPro model: Intel® Ethernet Connection I219-LM (Jacksonville)

Notes





Disclaimers





Memory

System Capacity Options



Upto 96GB

non-ECC



Yes

Brand of non-ECC Memory



Samsung/Ramaxel/Hynix/Micron(Micron ROW only)

ECC



None

Brand of ECC Memory



N/A

Memory clock frequency(MHz)



SoDIMM 5600 MT/s
or CSoDIMM 6400MT/s

Disclaimers





Storage

2.5" SAS Hard Disk Drive (HDD)



None

2.5″ SATA Hard Disk Drive (HDD)



None

2.5" SATA Solid State Drive (SSD)



None

M.2 (NGFF) PCIe Solid State Drive (SSD)



256GB Opal 2 PCIe G4 NVMe M.2 2280
512GB Opal 2 PCIe G4 NVMe M.2 2280
512GB Opal 2 PCIe G5 NVMe Performance M.2 2280
1TB Opal 2 PCIe G4 NVMe M.2 2280
1TB Opal 2 PCIe G5 NVMe Performance M.2 2280
2TB Opal 2 PCIe Gen5 Performance NVMe M.2 2280

2.5″ PCIe Solid State Drive (SSD)



None

Brand of Drive



Samsung
Kioxia
UnionMem
Hynix
Micron
SanDisk
WD

Intel Optane Storage Technology



Yes

RAID



Not Supported

RAID Level and Requirements





Disclaimers





Removeable Media

Media Card Reader Specifications



N/A

Disclaimers





SECTION III: Supported Component Detail

CPU Specifications

CPU



Ultra 5 -225H Non-vPro

Ultra 5 235H vPro

Ultra 7 255H non-vPro

Ultra 7 265H vPro

Ultra 9 285H vPro

Integrated Graphics



Intel Arc Pro Integrated Graphics (with at least 16GB dual dimm populated)
Integrated Graphics (single DIMM or <16GB dual dimm)

Intel Arc Pro Integrated Graphics (with at least 16GB dual dimm populated)
Integrated Graphics (single DIMM or <16GB dual dimm)

Intel Arc Pro Integrated Graphics (with at least 16GB dual dimm populated)
Integrated Graphics (single DIMM or <16GB dual dimm)

Intel Arc Pro Integrated Graphics (with at least 16GB dual dimm populated)
Integrated Graphics (single DIMM or <16GB dual dimm)

Intel Arc Pro Integrated Graphics (with at least 16GB dual dimm populated)
Integrated Graphics (single DIMM or <16GB dual dimm)

# of Cores



14

14

16

16

16

# of Threads



14

14

16

16

16

Max Turbo Frequency



4.9 GHz

5 GHz

5.1 GHz

5.3 GHz

5.4 GHz

P-core Max Turbo Frequency



4.9 GHz

5 GHz

5.1 GHz

5.2 GHz

5.4 GHz

E-core Max Turbo Frequency



4.3 GHz

4.4 GHz

4.4 GHz

4.6 GHz

4.5 GHz

Cache



18MB

18MB

24 MB

30 MB

24 MB

TDP



20W-65W

20W-65W

20W-65W

20W-65W

35W-65W

Intel ARK Spec Link



https://www.intel.com/content/www/us/en/products/sku/241749/intel-core-ultra-5-processor-225h-18m-cache-up-to-4-90-ghz/specifications.html

https://www.intel.com/content/www/us/en/products/sku/241748/intel-core-ultra-5-processor-235h-18m-cache-up-to-5-00-ghz/specifications.html

https://www.intel.com/content/www/us/en/products/sku/241751/intel-core-ultra-7-processor-255h-24m-cache-up-to-5-10-ghz/specifications.html

https://www.intel.com/content/www/us/en/products/sku/241068/intel-core-ultra-7-processor-265-30m-cache-up-to-5-30-ghz/specifications.html

https://www.intel.com/content/www/us/en/products/sku/241747/intel-core-ultra-9-processor-285h-24m-cache-up-to-5-40-ghz/specifications.html

Disclaimers













Display Specifications

Model



16" 16:10 WUXGA(1920*1200) IPS 400nit NTSC45%, 60Hz 3.2t Bent, Non-touch

Panel 16.0 16:10 WUXGA(1920*1200) IPS 500nit sRGB 100% 60Hz Bent 3.2t +2.1t narrow2.5mm AG LCLW LBL, OCT

16" 16:10 WQUXGA IPS 400nit, 100% CG, 60Hz 1.2t Bent, 4K OLED, ARAS With Graphite ;AOFT



Resolution



1920 x 1200

1920 x 1200

3840×2400

Diagonal



16"

16"

16"

Aspect Ratio



Ratio 16:10

Ratio 16:10

Ratio 16:10

Backlight



LED

LED

No Backlight

PPI



142

142

283

Active Area



344.68 x 215.42

344.68 x 215.42

344.45 x 215.28

Refresh Rate



60Hz

60Hz

 60Hz

Contrast Ratio



1200:1

1200:1

100000:1

Viewing Angle



89/89/89/89

89/89/89/89

89/89/89/89

Color gamut



45% NTSC

sRGB 100%

100% DCI-P3



Brightness



400nit

500nit

400nit



Contrast



N/A

N/A

N/A

Color Depth



8bit

8bit

HDR: 10bit

Interface



eDP 1.2

eDP 1.4

eDP 1.4b



Panel ID Recognition



EDID in BIOS Table

EDID in BIOS Table

 EDID in BIOS Table

Weight



410g max

320g max

221g max

Color Calibrator



AICCP

AICCP

X-Rite Pantone Factory Color Calibration

Panel Technology



IPS, Anti-Glare

IPS, Anti-Glare,TUV

OLED,TUV,Anti-reflection, Anti-smudge

Touch Panel



None

None

AOFT

Disclaimers









HDD Specifications

2.5" SAS Hard Disk Drive (HDD)



N/A

2.5″ SATA Hard Disk Drive (HDD)



N/A

Disclaimers





HDD Storage Device Specifications

Connector



N/A

Transfer Rate (Gb/sec)



N/A

Disclaimers





HDD Performance

Spindle Speed(RPM)



N/A

Power off to Spindle Stop(sec)



N/A

DC Power to Drive Ready(sec)



N/A

Receipt of Start Unit Command to Drive Ready(sec)



N/A

Average Latency(msec)



N/A

Disclaimers





HDD Power Management

Input (VDC)



N/A

Typical (Watts)



N/A

Idle (Watts)



N/A

Disclaimers





HDD Dimensions

Height (mm – Max)



N/A

Width (mm)



N/A

Depth (mm – Max)



N/A

Weight (grams)



N/A

Disclaimers





HDD Temperature

Operating(C) Ambient



N/A

Operating(C) Base Casting



N/A

Non-Operating(C) Ambient



N/A

Gradient(C per Hour)



N/A

Disclaimers





HDD Shock

Operating(Gs @ 2ms)



N/A

Non-Operating(Gs @ 2ms)



N/A

Disclaimers





SSD Specifications

2.5" SATA Solid State Drive (SSD)



N/A

M.2 (NGFF) PCIe Solid State Drive (SSD)



1x M.2 2280 PCIe Gen4

2.5″ PCIe Solid State Drive (SSD)



N/A

Intel Optane Storage Technology



N/A

Disclaimers





Solid State Storage Devices

Supported Types



M.2

Dimensions inches/centimeters (W x D x H)



22.0 (+-0.15) x 80.0 (+-0.15) x 2.3 (max)

Size



M.2 2280S3

Interface Type



PCIe NVMe Gen4

Read/Write IOPS Specifications



Performance PCIe Gen5p
Read: 1600k(2TB/1TB/512GB)
Write: 2600k(2TB/1TB/512GB)

PCIe Gen4v
Read: up to 480k (1TB/512GB/256GB)
Write: up to 650k(1TB/512GB/256GB)



Bandwidth Performance



PCIe Gen4 x 4 (16Gbps)

Power Consumption (Max)



3.0A (10us average)

Active(AVG)



5W

Idle



5mW (L1.2)

Min MTBF



2’000’000

Min Sequential Read



Performance PCIe Gen5p
up to 12200MB/s (2TB/1TB/512GB)

PCIe Gen4v
5700MB/s (1TB/512GB/256GB)



Min Sequential Write



Performance PCIe Gen5p
up to 6300MB/s (2TB/1TB/512GB)

PCIe Gen4v
3000MB/s (1TB/512GB/256GB)



Hardware Encryption



Yes

Disclaimers





Discrete Graphics Adapter

GPU Name



NNVIDIA RTX PRO 500 (6GB GDDR7 )Blackwell Generation Laptop GPU

NNVIDIA RTX PRO 1000 (8GB GDDR7 ) Blackwell Generation Laptop GPU



CUDA Processing Cores



2088

2088



GPU Memory



6GB

8GB



Memory Bandwidth



288 GB/s

384 GB/s



Memory Type



GDDR7

GDDR7



Memory Interface



96-bit

128-bit



TGP Max Power Consumption



50

50



Display Port



0

0



OpenGL



4.6

4.6



Shader Model



10.4

10.4



DirectX



12

12



PCIe Generation



5

5



Floating-Point Performance



1.1

1.1



VR Ready



No

No



Simultaneous Multi-Projection



No

No



NVIDIA FXAA/TXAA Antialiasing



Yes

Yes



NVIDIA nView Display Management Technology



Yes

Yes



GPU Direct for Video



No

No



Vulkan Support



Yes

Yes



NVIDIA Optimus



Yes

Yes



Disclaimers





WLAN

Model



WLAN Intel Fillmore Peak 2 WIFI7 BE201



Connector: Main, Aux/GNSS, GNSS



ANT1:AUX WiFi + BT; ANT2: Main WiFi



Antenna Diversity



Supported



MIMO



Supported



GNSS Bian



N/A



Radio ON/OFF Control



Supported



Connector interface



CNVio3



Operating Temperature (Adapter Shield)



0 °C to +50 °C



Humidity Non-Operating



50–90% RH @ 25–35 °C



Operating Systems



Windows 11*, Linux*, ChromeOS*



Wi-Fi Alliance



"802.11a/b/g/n/ac/ax/be, WPA/2/3 Personal and enterprise, WPS2, PMF, WMM,
WMM-PS, WFD, Miracast, Passpoint R2, Voice Personal "



IEEE WLAN Standard



802.11 a/b/g/n/ac/ax/be



Roaming



Support seamless roaming between access points



Bluetooth*



Bluetooth 5.4



Authentication



WPA3, WPA2



Authentication Protocols



EAP‑TLS, PEAP, EAP‑SIM/AKA



Encryption



AES‑CCMP 128-bit, AES‑GCMP 256-bit



Regulatory



Worldwide, DFS supported



US Government



FIPS 140‑3



Product Safety



UL, C‑UL, CB 62368‑1



Disclaimers





Battery

Dimension



57Wh: 296.44mm * 64.14mm * 6.75mm

75Wh: 296.44mm * 64.14mm * 8.15mm

Weight



57Wh: 226.14g

75Wh: 272.21g

Type (Chemistry and Cell)



Li-ion Polymer

Li-ion Polymer

Voltage



11.31V

11.61V

Battery Life



N/A

MM25: 14.5H(Best power efficiency), 13.5H(Balanced)

Battery Capacity



Integrated 3-cell 57Wh battery

Integrated 3-cell 75Wh battery

Charging Time



0% to 100%
Battery Charging Time (in-operation) 2.11hr
Battery Charging Time (off) 1.97 hr

0% to 100%
Battery Charging Time (in-operation) 2.35hr
Battery Charging Time (off) 2.04 hr

Operating Temperature Range



between 10°C (50°F) and 35°C (95°F)

between 10°C (50°F) and 35°C (95°F)

Warranty



1 Year / 3 Year Available

1 Year / 3 Year Available

Coin Cell Battery (Model)



CR2016

CR2016

Disclaimers







SECTION IV: BIOS / Certifications / Standards / Environmental

BIOS Specifications

WMI Support



Yes, if it is BIOS Setup change by WMI.

ROM-Based Setup Utility (F1)



Yes

Bootblock Recovery



N/A

Replicated Setup



Yes, it supported with SRSETUP tool.

Boot Control



Yes, it means Boot order change.

Discrete Mode



N/A, no Discrete Mode

Memory Change Alert



N/A

Thermal Alert



N/A

Asset Tag



Yes

System/Emergency ROM Flash Recovery with Video

N/A

Remote Wakeup/Remote Shutdown



Only support WOL from S5.

Keyboard-less Operation



N/A

Per-port Control



Yes, if it is I/O port enable/disable by BIOS Setup.

Adaptive Cooling



Yes, if it is thermal & fan control.

Security



Yes, BIOS password / Hard disk password / Finger print

Intel(R) AMT (includes ASF 2.0)



Yes. If you select vPro model

Intel(R) TXT



Yes. If you select vPro model

Memory Modes

N/A

UEFI



Unified Extensible Firmware Interface 2.9A

EMC & Safety

EMC



Published, Certified Existing Reports
EMC – Australia
EMC – Canada
EMC – EU/EFTA
EMC – Japan
EMC – New Zealand
EMC – Taiwan
EMC – Russia
EMC – South Korea
EMC – Kazakhstan
EMC – USA/Territories
EMC – Belarus

Not Applicable / Not Required
EMC – Israel
EMC – Moldova
EMC – Serbia
EMC – Turkey
EMC – Uzbekistan
EMC – Vietnam

Safety



To access the latest User Guide and Safety and Warranty Guide, go to:
https://support.lenovo.com

Low Halogen Declaration of Conformance
TNOT-2017-0040
Section 9 – Low Halogen Scorecard

Izod Test – EPEAT Compliant

Homologation PCRB Compliant
In the following countries: Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belize, Benin, Bermuda, Bolivia, Botswana, Burkina Faso, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Cayman Islands, Central African Republic, Chad, China, Colombia, Comoros, Congo, Costa Rica, Dijbouti, Dominican Republic, Egypt, El Salvador, Eritrea, Ethiopia, EU/EFTA, Fiji, Gabon, Gambia, Georgia, Ghana, Grenada, Guatemala, Guinea, Haiti, Honduras, Hong Kong, India, Indonesia, Israel, Jamaica, Japan, Jordan, Kazakhstan, Kenya, Kuwait, Laos, Lebanon, Liberia, Macau, Madagascar, Malawi, Malaysia, Mali, Mauritania, Mauritius, Mexico, Moldova, Mongolia, Morocco, Mozambique, Namibia, Nepal, New Zealand, Nicaragua, Niger, Nigeria, Oman, Pakistan, Panama, Papua New Guinea, Paraguay, Peru, Philippines, Qatar, Russia, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, South Africa, South Korea, Sri Lanka, Swaziland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tunisia, Turkey, Turkmenistan, Uganda, Ukraine, United Arab Emirates, Uruguay, USA/Territories, Uzbekistan, Venezuela, Vietnam, Zambia, Zimbabwe, Brazil – Inmetro 170 Govt Bids, Guinea-Bissau, Lesotho

Environmentals

Energy Star



ENERGY STAR® Version 9.0
For more information about ENERGY STAR, go to:
https://www.energystar.gov



EPEAT



EPEAT Declaration of Conformance For Machine Types: 21QV, 21QW



IT ECO declaration



The latest environmental information about Lenovo products is available at:
https://www.lenovo.com/ecodeclaration

Hazardous Substances



The latest environmental information about Lenovo products is available at:
https://www.lenovo.com/ecodeclaration
European Union RoHS
This Lenovo product, with included parts (cables, cords, and so on) meets the requirements of Directive
2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic
equipment ("RoHS recast" or "RoHS 2").
For more information about Lenovo worldwide compliance on RoHS, go to:
https://www.lenovo.com/rohs-communication

Manageability

Industry Standard Specifications



This product meets the following industry standard specifications for manageability functionality:
Intel LAN with AMT

Remote Manageability Software Solutions



Lenovo ThinkManagement Console
Microsoft System Center Configuration Manager
LANDesk Management Suite for ThinkVantage Technologies (www.landesk.com/lenovo)

System Software Manager



Lenovo ThinkPad supports software management tools from the Lenovo Vantage System Update suite:

System Update
Update Retriever

Service, Support, and Warranty



On-site Warranty and Service: Three-years, limited warranty and service offering delivers on-site, next business-day service for parts and labor and includes free telephone support 8am to 5pm. Global coverage ensures that any product purchased in one country and transferred to another, non-restricted country will remain fully covered under the original warranty and service offering.

Environmentals

Energy Star



ENERGY STAR® 9.0



EPEAT



EPEAT® Gold

RoHS Compliant



RoHS Compliant

TCO



TCO 10



Sustainability



90% PCC recycled plastic: Speaker enclosure
90% recycled plastic: 57WHr/75 WHr Battery
90% PCC recycled plastic: 100W PSU
90% recycled/sustainable packaging
Low-temperature solder

Disclaimers



Product packaging shall contain, on average, a minimum total percentage of 90% by weight of any combination of the following materials: Recycled content, biobased plastic, non-wood biobased fiber material, and/or sustainably forested material.

Materials Used



50% Recycled Aluminum A Cover
90% Recycled Magnesium Aluminum C cover middle frame
50% Recycled Aluminum D Cover
85% PCC Plastic in Key Caps, Backlit
90% PCC Plastic Speaker Enclosure
97% PCC Plastic Battery Pack Enclosure
90% PCC Plastic Slim 100W AC Adapter
Low Temperature Solder (memory, SSD, fingerprint reader module)
Plastic free packaging with 90% recycled and/or FSC certified content (standard)

TCO Certification



10



Disclaimers



1. EPEAT registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
2. Product packaging shall contain, on average, a minimum total percentage of 90% by weight of any combination of the following materials: Recycled content, biobased plastic, non-wood biobased fiber material, and/or sustainably forested material

Back to top Back to top
